Solar-powered pumps run on electricity generated by photovoltaic (PV) panels or the radiated thermal energy available from collected sunlight as opposed to grid electricity- or diesel-run water pumps.[1] Generally, solar-powered pumps consist of a solar panel array, solar charge controller (MPPT), DC water pump, fuse box/breakers, electrical wiring, and a water storage tank.[2] The operation of solar-powered pumps is more economical mainly due to the lower operation and maintenance costs and has less environmental impact than pumps powered by an internal combustion engine. Solar pumps are useful where grid electricity is unavailable or impractical, and alternative sources (in particular wind) do not provide sufficient energy.Solar-powered water pumps can deliver drinking water, water for livestock, or irrigation water.[1] Solar water pumps may be especially useful in small-scale or community-based irrigation, as large-scale irrigation requires large volumes of water that in turn require a large solar PV array.[3] As the water may only be required during some parts of the year, a large PV array would provide excess energy that is not necessarily required, thus making the system inefficient, unless an alternative use can be found.

Solar PV water pumping systems are used for irrigation and drinking water in India. Most of the pumps are fitted with a 2.0 - 3.7 kW motor that receives energy from a 4.8 kWp PV array. The 3.7 kW systems can deliver about 124,000 liters of water/day from a total of 50 meters setoff head and 70 meters dynamic head. By 30 August 2016, a total of 120,000 solar PV water pumping systems had been installed around the world. [4] Energy storage in the form of water storage is better than energy storage in the form of batteries for solar water pumps because no intermediary transformation of one form of energy to another is needed. The most common pump mechanics used are centrifugal pumps, multistage pumps, borehole pumps, and helical pumps. Important scientific concepts of fluid dynamics such as pressure vs. head, pump heads, pump curves, system curves, and net suction head are really important for the successful deployment and design of solar-powered pumps

FEATURES of a solar water pumping system

• - No fuel cost - as it uses available free sun light.
• - No electricity required.
• - Long operating life.
• - Highly reliable and durable.
• - Easy to operate and maintain.
• - Eco-friendly.

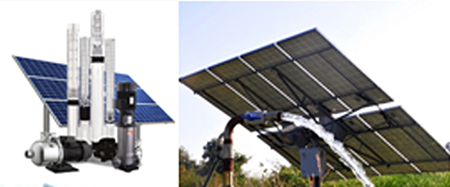

Technical Sepcifications : Solar BLDC pump Set
Motor HP	1 HP	2 HP	3 HP	5 HP
Voltage	72 Vdc, EC, PWM	110 Vdc, EC, PWM	220 Vdc, EC, PWM	380 Vdc, EC, PWM
Current	8A	10A	10A	12A
Type	4 Pole BLDC Motor Fully SS, IP68	4 Pole BLDC Motor Fully SS, IP68	4 Pole BLDC Motor Fully SS, IP68	4 Pole BLDC Motor Fully SS, IP68
Size	V-4 Water Filled	V-4 Water Filled	V-4 Water Filled	V-4 Water Filled
Head in Mtr	30|50|70|90	30|50|70|100	30|50|70|100	30|50|70|100
Discharge in LPM	45|33|24|18	150|90|65|35	200|130|90|60	350|240|150|90
Delivery	1.5"|1.25"|1.25	2"|1.5"|1.25"	2"|1.5	2.5"|2"|1.5"



Note : Also available on demand model 70W, 80W and We can increase the Battery Wh& PV Moduke Watt Extra Features street light with camera, remote control, GPS system control, WiFi. ** More than 2 Years warranty on customers demand. Extra Features street light wih camera, remote contorl, GPS system control Wifi

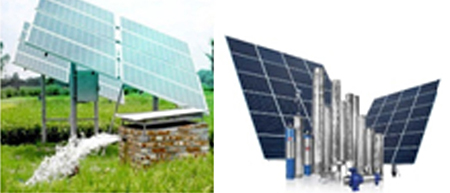

Technical Sepcifications : Solar BLDC pump Controller
Motor Hp	1 HP	2 HP	3 HP	5 HP	7.5 HP	10 HP
Solar Panle Con iguration	353 W x 3 Nos All in Series	325 W x 6 Nos All in Series	325 W x 10 Nos All in Series	325 W x 15 Nos All in Series	325 W x 24 Nos All in Series	325 W x 30 Nos All in Series
Input Volatge	120~150 Vdc	240~300 Vdc	360~450 Vdc	550~750 Vdc	450~550 Vdc	550~750 Vdc
MPPT Volatge Range	80V ~110V	180V ~250V	250V ~330V	480V ~570V	340V ~420V	480V ~570V
Output Volatge	0-72V, EC PWM 3Ph	0-110V, EC PWM 3Ph	0-22V, EC PWM 3Ph	0-380V, EC PWM 3Ph	0-320V, EC PWM 3Ph	0-380V, EC PWM 3Ph
Output Frequency	0~120Hz (Varies as per Solar radiation) ot 0~360 RPM
Grid + Solar Input	No, Only Solar Output
Led Display	Yes - Displays Live parameter liker DC Volt Motor RPM Soalr Power, DC Cureent, any fault if exit
RMS	OPTIONAL - With RMS Card Customer can ON-OFF pump by SMS also
Enviornment Temp Range	10C to 55C
Humidity	5 to 95%
Enclosure Type	IP 54
Protection	Dry Run Low Radition, Reserve Polarity, Over Volatge, Over Low Tank Over Load, Short Circuit

Note : Also available on demand model 70W, 80W and We can increase the Battery Wh& PV Moduke Watt Extra Features street light with camera, remote control, GPS system control, WiFi. ** More than 2 Years warranty on customers demand. Extra Features street light wih camera, remote contorl, GPS system control Wifi
