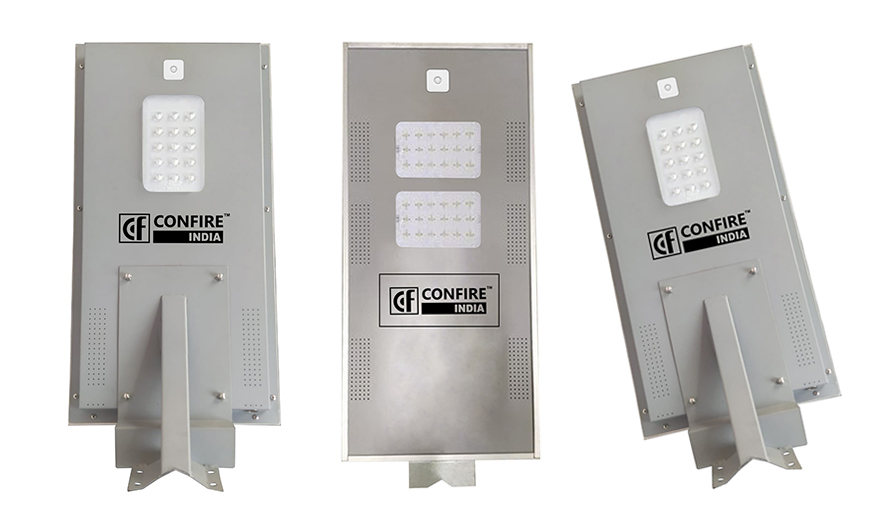

Technical Specifications : INTEGRATED (ALL IN ONE) STREET LIGHT SYSTEM
Model No.	CIIAIO9W	CIIAIO12W	CIIAIO15W	CIIAIO30W		CIIAIO40W	CIIAIO60W
Solar Module (Polycrystalline/Monocrystalline)	60 Wp				75 Wp	100 Wp	150 Wp
LED Light	9W LED	12W LED	15W LED		18W | 24W	40W LED	60W LED
Battery Capacity (LiPo4 /Lithium Battery)	12.8V 15AH				12.8V 18AH	12.8V 24 AH	12.8V 30AH
Motion Sensor	PIR Motion Sensor(10m Range)
Lumen Output \Watt	120 Lumen / W
Operation	Light will glow in full bright mode for first 4 hours, After 4 hours, Light will Dim to 33 Power and motion sensor will activate for detection of motion. If a human motion is detected in 10M area around the light, It will glow in full mode for 2 minutes, After that it will again come to 33 power.
LED Driver Efficiency	>93.5
LED Light Operating Voltage Range	11-16V
Load Cutt-Off Voltage for Battery Deep Discharge Protection			11.2 volt ±1
Space Between pole to pole	10mtr to 15mtr
Pole	G.I. Galvanized (5m + 1m) / Octagonal Pole
Light Backup Time	Full Night
Net Weight	13Kg Approx
Product Dimension (L x W x H)	770 x 580 x 145 (mm)
Over Charge Protection	Provided
Deep discharge protection / Battery reverse Protection	Provided
load open & short protection	Provided
Indication on Charging	Green LED Glow
Indication on Battery Low	Red LED Glow
Indication on Higher Cutt Off	Green LED Blinking
Reverse Current Flow protection	Provided
Temperature Compensation	Provided
Packaging Contents	Integrated light with SPV, Mounting bracket,U-clamp, Nut-bolt
Product Warranty	2 Years Warranty complete System (Battery warranty 1 Year / **)

Note : Also available on demand model 70W, 80W and We can increase the Battery Wh& PV Moduke Watt Extra Features street light with camera, remote control, GPS system control, WiFi. ** More than 2 Years warranty on customers demand. Extra Features street light wih camera, remote contorl, GPS system control Wifi
