A solar controller is an electronic device that controls the circulating pump in a solar hot water system to harvest as much heat as possible from the solar panels and protect the system from overheating. The basic job of the controller is to turn the circulating pump on when there is heat available in the panels, moving the working fluid through the panels to the heat exchanger at the thermal store. Heat is available whenever the temperature of the solar panel is greater than the temperature of the water in the heat exchanger. Overheat protection is achieved by turning the pump off when the store reaches its maximum temperature and sometimes cooling the store by turning the pump on when the store is hotter than the panels. The controller's main function is to switch the circulating pump on or off. The pump is usually switched on when the solar panel is hotter than the water in the store's heat exchanger and off when the panel is colder. Switching the pump on transfers the heat in the panel to the store. Switching it off when the panels cool prevents a reversal of the process and loss of heat from the store. The controller measures and compares the temperatures in the panel and the heat exchanger every few seconds. The simplest solar controller circuit uses a comparator with two temperature inputs, one at the solar panel and one at the thermal store's heat exchanger, and an output to control the pump. Commercial controllers use a microprocessor usually with a LCD display and simple user interface with a few pushbuttons. Power for the controller and the pump can come from a mains electric supply or from a photovoltaic (PV) module.

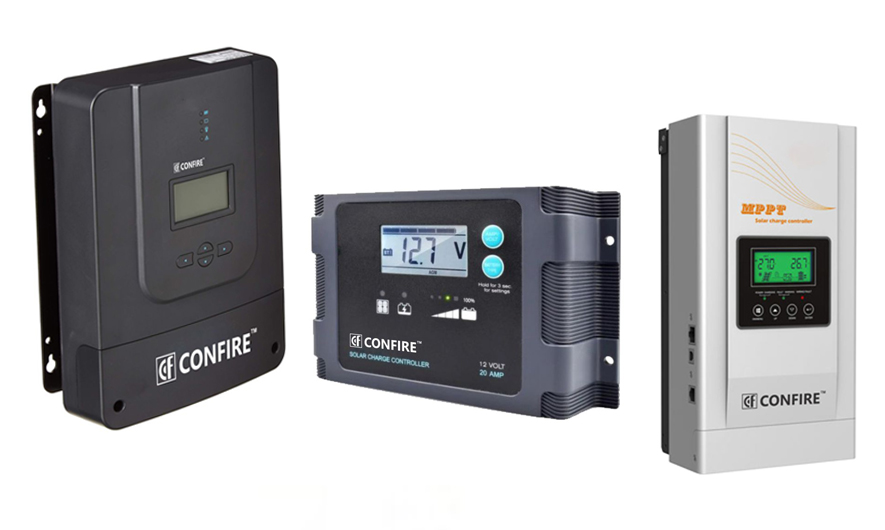

Technical Specifications : SOLAR CHARGE CONTROLLER
Model No.	CIICC05	CIICC08	CIICC10	CIICC15	CIICC20	CIICC40
System Voltage	12 V			12/24 V Auto Recognition
Max. Charge / Load Current	5 A	8 A	10 A	15 A	20 A	40 A
Efficiency	97.20%	97.80%	98%			98.10%
Float Charge	13.7 V			27.4 V
Boost Charge	14.4 V			28.8 V
Equalization	14.8 V			29.6 V
Charging Method	3 - step (on Demand)
Reconnect Level	12.8 V			25.6 V
Over Voltage Protection	14.8 V			29.6 V
UnderVoltageProtection	11.2 V			22.4 V
Max. Panel Voltage	22 V in 12 V system			44 V in 24 V system
TemperatureCompensation	-2 to -3 mV / ºC / Cell
Max. Own Compensation	<4 mA		<15 mA		<20 mA
Function Indication	Type LED type / Digital Meter (LCD) / Analog Meter / Seven Segment Display Meter
Grounding	ve grounding possible
Ambient Temperature	-15 to 80 degree C
Max. Height	4000 m above sea level
Battery Type	Lead acid (GEL, AGM, Flooded), Li-ion (Optional)
Weight	200 gm			900 gm
Dimension (LxBxH)	10.5 x 14.5 x 4 (cm)			18 x 18 x 8 (cm)
Type of Protection	IP 21
Fuse	Electronic Fuse Provided
Mobile charger (Optional)	Plug in Socket (on Demand)
Mounting type	Suitable for wall Mounting
Product Warranty	5 Year / **



Note : Also available on running model 36V/30A , 48V/40A-50A, 72V/ 50A , 96V/40A-50A-60A , 120V/50A-60A. 144V/ 50A-60A , 196V/50A-60A , 360V/80A
Extra Features CC with GPS system control, WIFi ** More than 5 Years warranty on customers demand.
