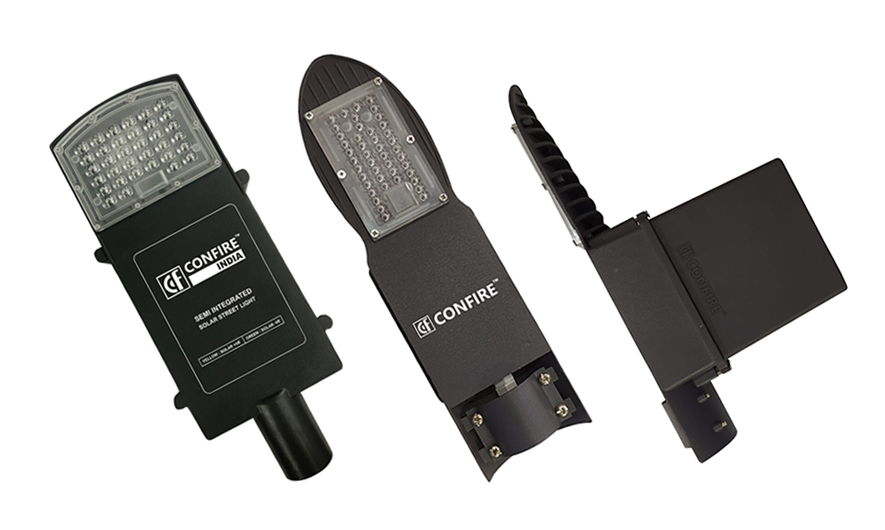

SEMI Integrated (Two in One) Light System

SEMI INTEGRATED (TWO IN ONE) LIGHT SYSTEM


Technical Specifications : SEMI INTEGRATED (TWO IN ONE) LIGHT SYSTEM
Model No. CIITIO9W CIITIO12W CIITIO15W CIITIO30W CIITIO40W CIITIO60W
Solar Module (Polycrystalline/Monocrystalline) 60 Wp 75 Wp 100 Wp 150 Wp
LED Light 9W LED 12W LED 15W LED 18W | 24W 40W LED 60W LED
Battery Capacity (LiPo4 /Lithium Battery) 12.8V 15AH 12.8V 18AH 12.8V 24 AH 12.8V 30AH
Motion Sensor PIR Motion Sensor(10m Range)
Lumen Output \Watt 120 Lumen / W
Operation Light will glow in full bright mode for first 4 hours, After 4 hours, Light will Dim to 33 Power and motion sensor will activate for detection of motion. If a human motion is detected in 10M area around the light, It will glow in full mode for 2 minutes, After that it will again come to 33 power.
LED Driver Efficiency
>93.5
LED Light Operating Voltage Range 11-16V
Load Cutt-Off Voltage for Battery Deep Discharge Protection 11.2 volt ±1
Space Between pole to pole 10mtr to 15mtr
Pole G.I. Galvanized (5m + 1m) / Octagonal Pole
Light Backup Time Full Night
Net Weight 3Kg Approx
Product Dimension (L x W x H) 420 x 210 x 90(mm)
Over Charge Protection Provided
Deep discharge protection / Battery reverse Protection Provided
load open & short protection Provided
Indication on Charging Green LED Glow
Indication on Battery Low Red LED Glow
Indication on Higher Cutt Off Green LED Blinking
Reverse Current Flow protection Provided
Temperature Compensation Provided
Packaging Contents Integrated light with SPV, Mounting bracket,U-clamp, Nut-bolt
Product Warranty 5 Years Warranty complete System (Battery warranty 1 Year / **)


Note : Also available on demand model 70W, 80W and We can increase the Battery Wh& PV Moduke Watt Extra Features street light with camera, remote control, GPS system control, WiFi. ** More than 2 Years warranty on customers demand. Extra Features street light wih camera, remote contorl, GPS system control Wifi
