Solar AC & Fridge

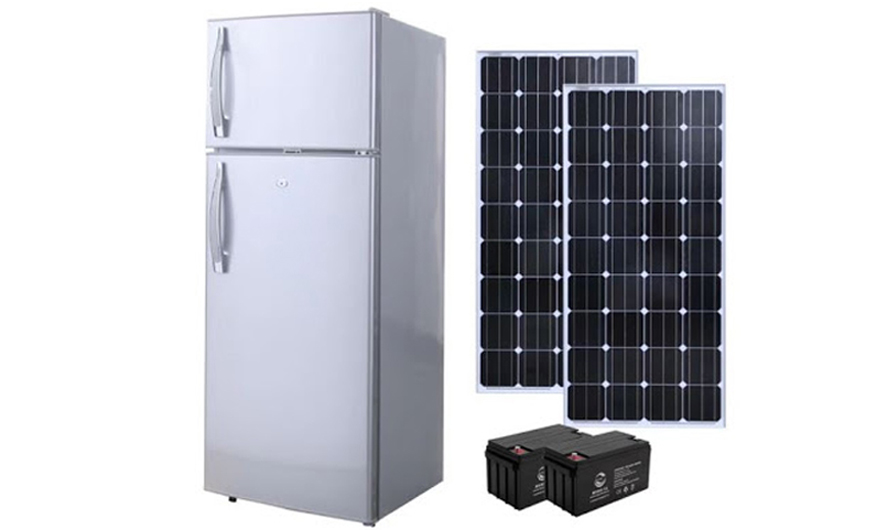

SOLAR REFRIGERATOR

A solar-powered refrigerator is a refrigerator which runs on energy directly provided by sun, and may include photovoltaic or solar thermal energy. Solar-powered refrigerators are able to keep perishable goods such as meat and dairy cool in hot climates, and are used to keep much needed vaccines at their appropriate temperature to avoid spoilage. Solar-powered refrigerators are typically used in off-the-grid locations where utility provided AC power is not available. Traditionally solar-powered refrigerators and vaccine coolers use a combination of solar panels and lead batteries to store energy for cloudy days and at night in the absence of sunlight to keep their contents cool. These days, solar refrigerators feature no battery at all. Instead, the change of the refrigerants phase from gas to liquid produces enough thermal energy to keep the fridge going without a source of sunshine. This way, no batteries are required to power solar refrigerators at night.
Modern designs use wireless technology and fuzzy control theory for battery management. The street lights using this technology can operate as a network with each light having the capability of performing the turning on and off of the network

SOLAR REFRIGERATOR

DC REFRUGERATOR 12 V DC 25 WATT ONLY S" Model Ready Go
CAPACITY
200LTR
225LTR
Operating Volatge
12 V DC
12 V DC
Wattage
25 watt
25 watt
Solar PV Module
20 watt 12 v
200 watt 12 v
Battery
150 AH
150 Ah
Work without stabilizer
Yes
Yes
Fastest Ice Marketing
Yes
Yes
Handle Type
Arina
Arina
Dimension
124 x 59 x 638 mm
1172 X 534 X 633 mm

MODEL
SWAY-CII-230L SWAY-CII-350L SWAY-CII-500L
Capaity litres
230 Litre
350 Litre
500 Litre
Color
White/Red
White/Red
White/Red
Input Voltage
12 V DC
12 V DC
24V/ 48V DC
Power Consumption
70 watt
120 watt
150 watt
Door
Single
 Single
 Single
Compressor Type
BLDC
BLDC
BLDC
Temperature
15-20 degree
15-20 degree
15-20 degree
Body
M.S /non scratch
M.S /non scratch
M.S /non scratch
Dimension
952*520*825 mm
1000*663*770 mm
1546*735*862 mm
Weight
45 kgs
59 kgs
73 kgs
Battery Input
24V-100AH  x Pcs
24V-100AH  x Pcs
24V-150AH  x Pcs
Solar Input
300 watt
300 watt
600 watt


SOLAR AC

Solar air conditioning refers to any air conditioning (cooling) system that uses solar power. This can be done through passive solar design, solar thermal energy conversion, and photovoltaic conversion (sunlight to electricity). Active solar cooling wherein solar thermal collectors provide input energy for a desiccant cooling system. There are several commercially available systems that blow air through a desiccant impregnated medium for both the dehumidification and the regeneration cycle. The solar heat is one way that the regeneration cycle is powered. In theory packed towers can be used to form a counter-current flow of the air and the liquid desiccant but are not normally employed in commercially available Solar air conditioning units offer environmental benefits including lower grid demand and load shifting during peak usage, reduced electricity costs, fewer power outages, off-the-grid capabilities and reduced greenhouse gas emissions. Solar air conditioning units come in two basic flavors: hybrids and chillers.





SOLAR AC

AYURVEDA SERIES : TECHNICAL SHEET
S NO.
SPECIFIACTION MODEL
SWAY 15
1
COOLING CAPACITY BTU
13500-17000
2
CAPACITY (TON)
1.5 TON
3
STARTING CURRENT AMP
0.5
4
RUNNING CURRENT AMP
MINI 0.5 MAX 5.5
5
AIR FLOW
424/750
6
Yes REFRIGERANT
R410/R32
7
PER HOUR UNIT CONCUMPTION
0.5/0.8
8
COMPRESSOR MAGNETIC/VIBRATIC
MAGNATIC/VIBRATIC
9
AIR FILTER
3 STAGE NEEEM
10
ELECTRICITY SAVING COMPARSION TO OTHER AC
UPTO 80%
11

POWER INPUT  SOUND LEVEL (H/M/L)

190V -250V AC 38/34/31
12
INDOOR UNIT DEMENSIONS NET WEIGHT
895X360X295MM 1.9 KG
13
OUTDOOR UNIT DEMENSIONS NET WEIGHT
915X600X350MM 33KGS
14
NOISE LEVEL POWER SOURCE RATING MCB POWER SUPPLY TO REF. MAX PIPING LENGTH
33 DBA 6A  INDOOR 15FT

MAGIC COOL SERIES : TECHNICAL SHEET
S NO
SPECIFIACTION MODEL S WAY 1.5 MODEL SWAY 2.0 MODEL SWAY 2.5
1
COOLING CAPACITY
13500-17000
17500-21500
19500-26500
2
CAPQACITY (TON)
1.5 TON
2 TON
2.5 TON
3
STARTING CUREENT AMP.
0.5
0.7
0.7
4
RUNNING CURRENT AMP.
MIN 0.8 MAX 5.5
MINI 2 MAXI 8
MINI 2.5 MAXI 10
5
AIR FLOW
424/750
 580/920
580/590
6
REFRIGENT
R410/R32
R410/320
R410/R32
7
PER HOUR UNIT CONSUMPTION
0.5/0.8
1.1/1.5
1.8/2.1
8
COMPRESSOR MAGNATIC/VIBRATIC
MAGNETIC/VIBERTIC
MAGNETIC/VIBERTIC
MAGNETIC/VIBERTIC
9
ELECTRICITY SAVING COMPARSION TO OTHER AC
UPTO 80%
UPTO 80%
UPTO 80%
10
POWER INPUT
190V/125V AC
190V/125V AC
190V/250V AC
11
SOUND LEVEL (H/M/L)
38/34/31
38/34/31
38/34/31
12
INDOOR UNIT DEMENSIONS NET WEIGHT
920X370X282 MM   13.1 KGS
1016X381X305 MM 15 KGS
1016X38FX305 MM 15 KGS
13
OUTDOOR UNIT DEMENSIONS NET WEIGHT
820X620X370 MM 28.6 KGS
915X432X635 MM 38KGS
915X432FX635 MM 38KGS
14
NOISE LEVEL POWER SOURCE RATING MCB POWER SUPPLY REF, MAX PIPING LENGTH
33DBA 6A INDOOR 15 FT
36 DBA 6A INDOOR 15FT
37 DBA FA INDOOR 15FT
